Boilers are the heart of any steam-driven industrial operation—but a boiler alone cannot ensure optimized performance or environmental compliance. The real game changers are boiler accessories—intelligent systems and devices that enhance efficiency, improve safety, and reduce emissions. In this blog, we explore a range of critical accessories offered by Thermodyne Engineering Systems that support various industrial applications and elevate overall plant performance.

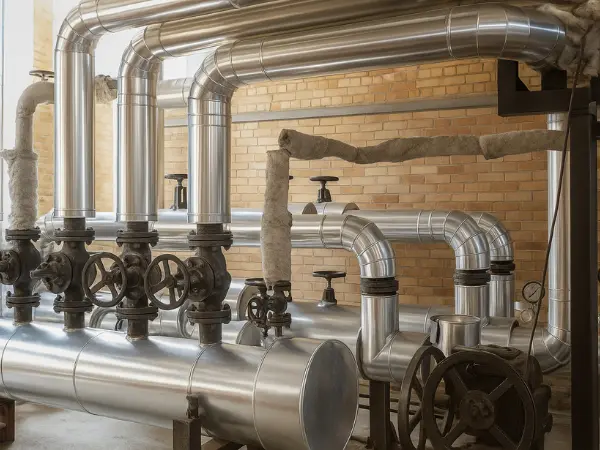

1. Pressure Reducing System (PRS)
Delivering the Right Pressure, Every Time
Industrial steam boilers typically operate at high pressures to maximize steam generation efficiency. However, not all industrial processes require such high-pressure steam. That’s where a Pressure Reducing System (PRS) comes into play.
Key Functions:
- Reduces steam pressure as per the process requirement.
- Maintains consistent downstream pressure despite upstream fluctuations.
- Enhances equipment safety and protects downstream components.
Industries Benefiting from PRS:
Pharmaceutical, Food Processing, Garment Manufacturing, and Chemical Plants.

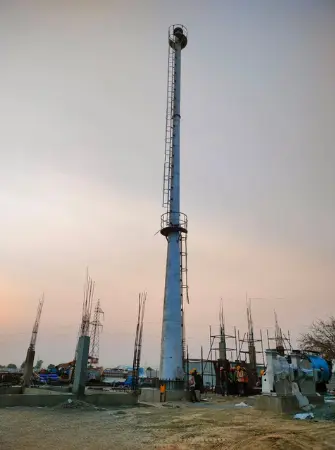

2. Industrial Chimney
Safe Emission Release with Structural Integrity
The Industrial Chimney is vital for discharging flue gases from boilers and thermic fluid heaters into the atmosphere at a height that ensures dispersion and dilution.
Features:
- Ensures compliance with air pollution norms.
- Protects operators and equipment from toxic exhaust exposure.
Used In:
Hotels, Plywood Plants, Textile Mills, and Food Processing Units.

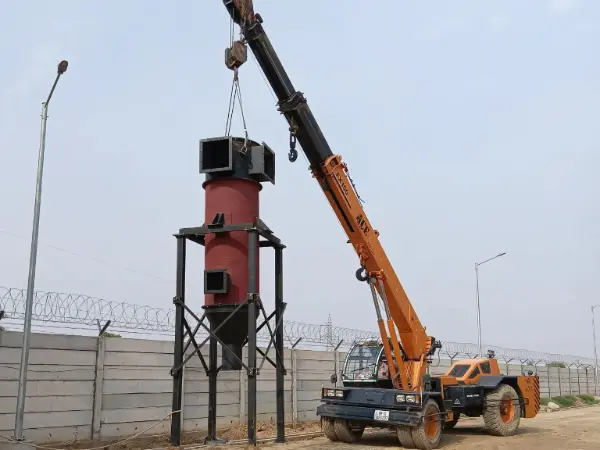

3. Air Preheater (APH)
Boosting Efficiency with Preheated Combustion Air
An Air Preheater uses residual flue gas heat to pre-warm combustion air, improving thermal efficiency and reducing fuel consumption.
Advantages:
- Enhances combustion quality
- Saves fuel
- Reduces boiler startup time
Preferred In:
Power Plants, Paper Mills, Large Manufacturing Units
1. ID Fan (Induced Draft Fan)
Controlled Exhaust for Optimized Combustion
ID fans maintain negative pressure inside the boiler and pull flue gases through the pollution control equipment.
Why It’s Important:
- Ensures proper draft and exhaust gas flow
- Enhances combustion stability
- Works in tandem with wet scrubbers, bag filters
Applicable In:
Coal, Biomass, and Oil-Fired Boilers
2. FD Fan (Forced Draft Fan)
Ensuring Adequate Air Supply for Combustion
FD fans push fresh air into the furnace to aid fuel burning.
Key Benefits:
- Increases combustion efficiency
- Allows better flame control
- Works efficiently with multi-fuel systems
Utilized By:
Textile, Rubber, Food Processing, and Chemical Plants

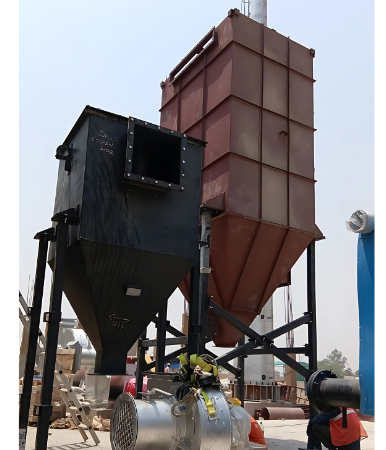

3. Cyclone Dust Collector
First Line of Defense Against Particulate Pollution
Cyclone dust collectors remove large particulate matter using centrifugal force before the gas reaches finer filtration systems.
Features:
- High dust load handling
- Minimal maintenance
Removes suspended particle or ash from the flue gas and protects the ID fan propeller.
Common In:
Biomass, Plywood, and Coal Boiler Installations
Efficiency Improvement Accessories
Using these accessories can help recover heat, improve steam quality, and minimize energy loss. By integrating the right accessories, industries can achieve better thermal performance, lower emissions, and reduced operational costs. Thermodyne offers advanced solutions that optimize steam usage, reduce fuel costs, leading to substantial operational savings.

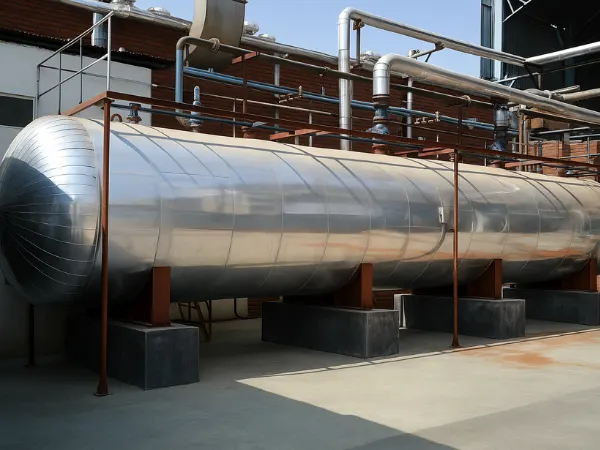

1. Steam Accumulator
Balancing Steam Demand and Supply
A Steam Accumulator is a pressure vessel that stores excess steam generated during low-demand periods and supplies it back during peak loads.
Benefits:
- Reduces burner cycling and improves boiler life.
- Stabilizes steam pressure across fluctuating loads.
- Prevents steam starvation during peak hours.
Ideal For:
Plywood Plants, Textile Finishing, Autoclaving Units, and Food Packaging Lines.

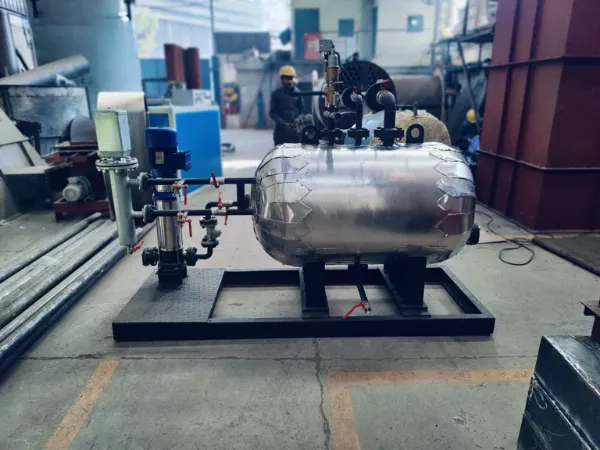

2. Pressurised Condensate Recovery Module (PCRM)
Recover Condensate, Reclaim Energy
Steam that condenses in pipelines holds significant thermal energy. The Pressurised Condensate Recovery Module collects this condensate under pressure and returns it to the boiler without flashing to steam.
Advantages:
- Saves fuel and water treatment costs.
- Improves overall system efficiency.
- Reduces blowdown frequency and wastewater.
Application Areas:
Chemical Industry, Pharmaceuticals, Paint Manufacturing, and FMCG Units.

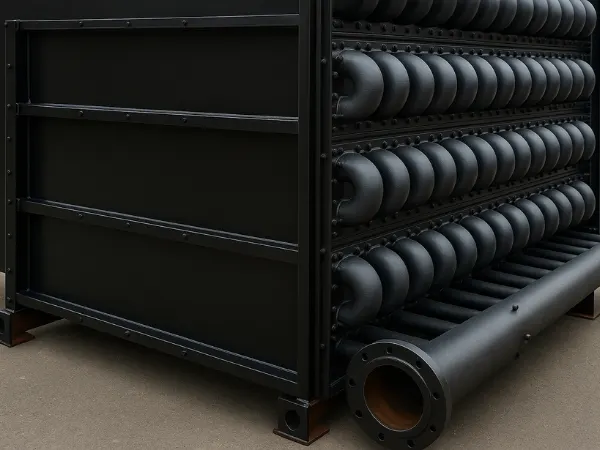

3. Pressurised Economiser
Smart Heat Recovery, Better Fuel Economy
A Pressurised Economiser recovers residual heat from boiler flue gases and uses it to preheat boiler feedwater. This significantly reduces fuel consumption.
Key Features:
- Withstands high back pressure due to pressurized operation.
- Reduces stack temperature for better energy utilization.
- Improves boiler thermal efficiency by 5–10%.
Deployed In:
Plywood Industries, Rice Mills, Breweries, and Soap Manufacturing Plants
Pollution Control Accessories
With increasing environmental regulations and awareness, pollution control is no longer optional—it’s a necessity. Pre-processing of flue gas of solid fuel based boilers is a must as it contains high levels of dust and ash.

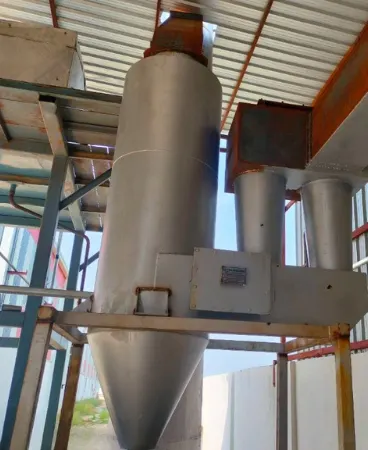

1. Wet Scrubber
Effective Flue Gas Cleaning for Sustainable Operations
A Wet Scrubber is designed to remove pollutants like particulate matter, SOx, and other toxic gases by scrubbing them with liquid.
Highlights:
- Removes both particulate matter and gaseous pollutants.
- Suitable for high dust load environments.
- Aids in meeting CPCB emission norms.
Common in:
Coal/Wood-Fired Boiler Plants, Biomass Boilers, and Furnaces.
2. Bag Filter
Precision Filtration for Cleaner Air
Bag Filters are highly efficient in removing fine particulates from flue gases using fabric filtration technology.
Why It Matters:
- High dust collection efficiency up to 99%.
- Complies with emission standards.
- Easy to clean and maintain.
Widely Used In:
Plywood, Rubber, Cement, and Rice Husk-Fired Boiler Units.
What Sets Thermodyne’s Boiler Accessories Apart?
- Designed to maximize boiler output and life
- Engineered for energy savings and environmental compliance
- Tailored to specific industrial applications and custom-built for your setup
- Supported by a highly committed service and engineering team
Let’s Talk Efficiency & Sustainability
At Thermodyne Engineering Systems, we don’t just sell boilers—we deliver integrated thermal solutions. Our boiler accessories are designed to minimize fuel usage, reduce maintenance costs, and help your plant stay compliant and competitive.
📧 Reach out to us at: www.thermodyneboilers.com
📞 Contact: +91-9990226006
FAQs – Boiler Accessories for Efficiency & Pollution Control
Boiler accessories are additional components like economisers, steam accumulators, and wet scrubbers that improve a boiler’s efficiency, performance, safety, and environmental compliance. They are essential for reducing operational costs and optimizing steam generation.
A PRS reduces high-pressure steam from the boiler to the required lower pressure for downstream applications. It ensures stable pressure delivery, protects downstream equipment, and prevents steam wastage due to overpressure.
An Industrial Chimney safely expels flue gases into the atmosphere at a regulated height to aid in dispersion, reduce pollution near the ground level, and meet environmental compliance standards.
Steam Accumulators store excess steam during low demand and release it during peak demand, helping maintain steam pressure consistency and reducing boiler load fluctuations.
The PCRM collects hot condensate under pressure and recirculates it back to the boiler without flashing. This saves energy, water, and chemical costs while improving boiler efficiency.
A Pressurised Economiser recovers waste heat from flue gases and uses it to preheat boiler feedwater. This reduces fuel consumption, improves combustion efficiency, and minimizes flue gas temperature.
A Wet Scrubber uses liquid to wash out pollutants and gases from flue gases, while a Bag Filter uses fabric filtration to capture fine particulate matter. Wet scrubbers are ideal for gaseous and dust pollutants; bag filters excel in dry dust environments.
Yes, most Thermodyne accessories can be integrated with existing boilers through custom engineering, ensuring seamless operation and performance upgrades without complete system overhauls.
Industries like rice mills, plywood, pharmaceuticals, chemicals, food processing, garments, rubber, and biomass plants benefit significantly from these accessories for both efficiency and pollution control.
Thermodyne Engineering Systems provides full support—from design, manufacturing, and on-site installation to after-sales service and AMC (Annual Maintenance Contracts), ensuring long-term reliability and optimal system performance.
