In today’s competitive industrial environment, the demand for efficient, compact, and responsive steam generation systems is at an all-time high. For industries seeking quick steam in limited space, coil type boiler – Revosteam are a revolutionary solution. Designed to deliver high performance with low footprint, these boilers are ideal for small to mid-sized industrial operations.
What is a Coil Type Boiler?
A coil type boiler Revosteam – also known as a coil steam boiler or coil type steam boiler – is a modern version of the water tube boiler. In this design, water circulates through a helical coil that is directly heated by combustion gases. This configuration ensures rapid heat transfer and instant steam generation.
Unlike conventional shell-type boilers, coil type steam boilers have a very low water-holding capacity. As a result, they typically fall under the non-IBR category, simplifying installation, licensing, and maintenance requirements. These boilers are perfectly suited for batch-based or intermittent operations.
How Does a Coil Type Boiler Work?

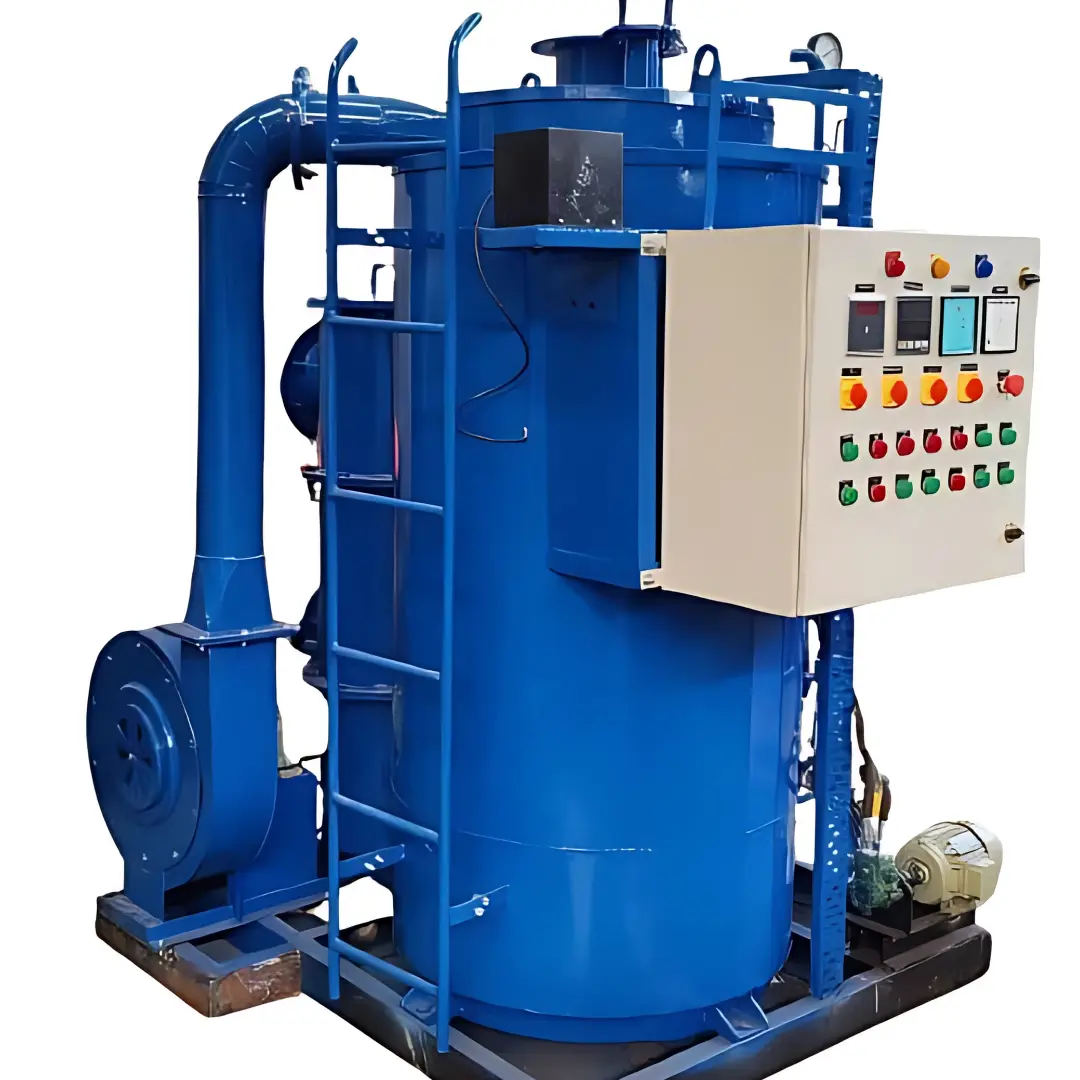

In coil type boilers such as Thermodyne’s Revosteam, the working principle is based on a helical coil housed inside a jacketed mild steel shell. Here’s how it works:
- Air Preheating: Combustion air is forced into the system through a centrifugal blower. The air passes through the shell’s jacket, getting preheated and improving combustion efficiency.
- Burner Fitment: The burner is vertically mounted. The flame travels downward through the coil in the first pass, initiating radiant heat transfer.
- Flue Gas Reversal: The flue gases reverse upward through the same coil zone, forming the second radiant heat pass.
- Third Pass (Convective): After reversal, gases move between the coil and inner shell, achieving high-velocity convective heat transfer.
- Economizer Section: The flue gases then enter a shell-and-tube economizer, mounted on the same skid. Gases flow through tubes while feedwater surrounds them, preheating water before it enters the boiler coil.
- Optimizer: An optimizer regulates feedwater temperature to maintain consistent heat input.
- Thermal Insulation: The entire setup is lined with ceramic blankets, reducing heat loss and ensuring safer external temperatures.
This three-pass design with integrated heat recovery systems results in high thermal efficiency and excellent fuel economy.
Key Advantages of Coil Type Boilers
1- Fully Automatic Operation
Coil type steam boilers like Revosteam are fully automatic. Minimal manual intervention is needed, improving reliability and safety.
2- Four-Pass Design for Maximum Efficiency
The unique reverse-flow four-pass system ensures optimum radiant and convective heat transfer, resulting in exceptional thermal performance.
3- High Efficiency with Low Fuel Consumption
Integrated systems like economizers and preheaters ensure minimal energy loss. Efficiency can reach up to 90%, lowering operational costs.
4- Quick Installation & Compact Design
Skid-mounted and compact, these boilers require minimal site preparation, making them ideal for space-constrained industries.
5- Instant Steam in 5 Minutes
Thanks to their low water content, coil steam boilers can produce steam in just 5 minutes from a cold start.
6- Built-in Economizer
The built-in economizer preheats the feedwater, further improving system efficiency.
7- Fail-Safe Design
Equipped with advanced controls and safety mechanisms, these boilers offer secure and reliable operations.
Industry Applications of Coil Type Boilers
1- Food Processing Units
Used for blanching, sterilization, CIP, and steam cleaning.
2- Pharmaceutical Industry
Ideal for batch sterilization, reactors, and process heating in clean environments.
3- Hospitals & Laboratories
Provide steam for sterilizers, laundry, and sanitation processes.
4- Hotels & Hospitality
Utilized in kitchen utilities, dishwashers, and laundries.
5- Textile & Garment Industry
Steam required for dyeing, pressing, finishing, and drying.
6- Small Chemical Plants
Steam supply for distillation, reactors, and process vessels.
7- Startups & SMEs
Cost-effective and space-efficient, perfect for growing operations with limited resources.
Why select Thermodyne’s Coil Type Boiler?
Thermodyne is a trusted manufacturer of high-efficiency coil type boilers with advanced features:
- Unique four-pass reverse-flow design
- Skid-mounted economizer and optimizer
- Fully automatic operation and fail-safe controls
- Compatibility with multiple fuel types
- Quick installation with minimal site preparation
Explore our complete range: Revosteam – Coil Type Boiler by Thermodyne
Conclusion: Is a Coil Type Boiler Right for You?
If your plant steam load is less than 1000 kg/hr and you require rapid steam generation, compact installation, and high thermal efficiency, a coil type boiler is the perfect fit. From textiles and pharmaceuticals to food and hospitality, Thermodyne’s advanced coil steam boilers like Revosteam ensure performance, safety, and cost savings.
Contact us today to discuss your steam requirements and get the right solution tailored to your industry.
Coil type boiler related FAQs:
Its helical coil heats water directly in the flame, delivering dry steam within minutes and minimizing standby losses.
The coil is the heat‑transfer tube bundle; stainless steel resists corrosion, while carbon steel offers cost efficiency—both must handle high thermal stress.
Any steam generator ≤7 kg/cm² (g) pressure and ≤22.75 L combined water‑plus‑steam capacity—exempt from IBR inspections yet safe when built to quality standards.
